PRODUCT OVERVIEW

Design and Form Factor

The UPS supports both rack installation (2U in a 19-inch rack) and tower configuration, providing flexible deployment options for IT environments or standalone setups. Its dimensions are approximately 438 mm (W) × 86.5 mm (H) × 573 mm (D), with a net weight of around 13.6 kg, making it compact yet robust enough for demanding applications.

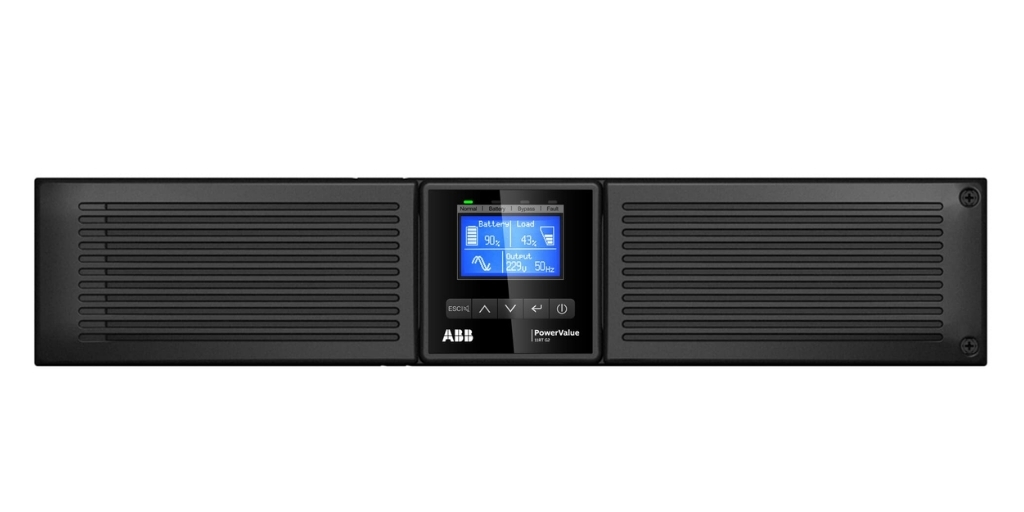

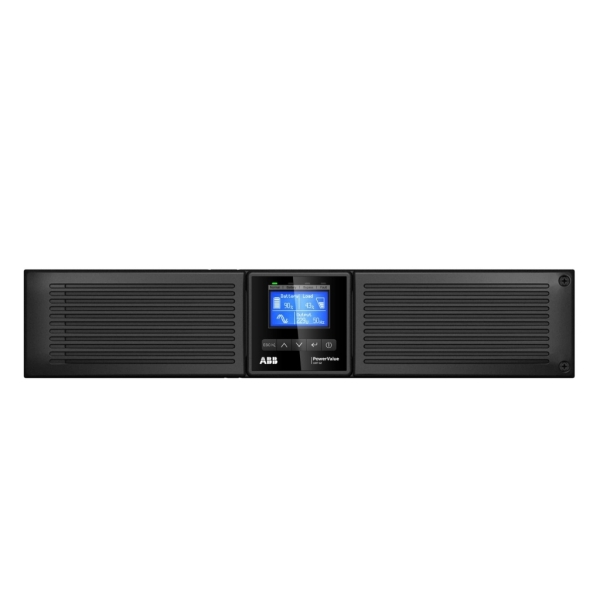

The front panel features an LCD display for real-time monitoring of UPS status, load levels, battery condition, and fault notifications, enabling easy local oversight. The enclosure is rated IP20, suitable for indoor installations such as server cabinets, communication closets, and light industrial environments.

Battery and Runtime Extension

The UPS typically ships without internal batteries installed but supports external battery modules (EBMs) to provide extended runtime. One or multiple EBMs can be connected to increase autonomy during power outages. Actual backup time depends on the load and the number of EBMs installed, enabling runtime customization from brief hold-ups for orderly shutdowns to extended backup periods.

Key Product Features

1. Online double-conversion UPS topology for continuous power conditioning and reliable protection

2. 6000 VA / 6000 W output with unity power factor for full utilization of capacity

3. Rack-mountable (2U) and tower form factor for flexible deployment

4. USB, RS-232, and optional SNMP communication interfaces for remote monitoring and management

5. Scalable runtime with support for multiple external battery modules (EBMs)

6. Parallel capability (up to three units) for increased capacity or redundancy

7. User-friendly LCD display with comprehensive protective features, including auto-shutdown and potential-free switching
