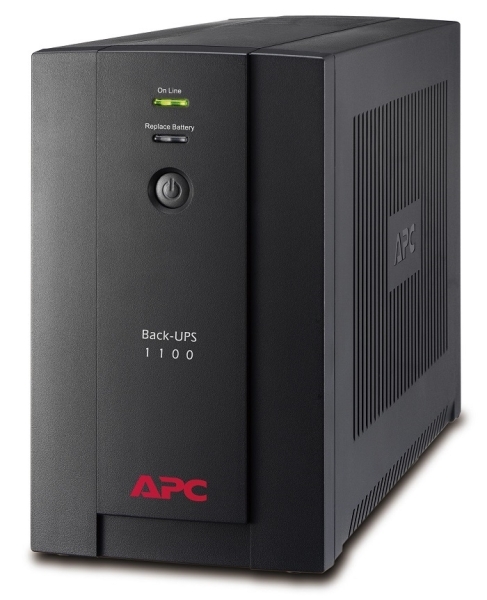

APC BX1100LI-MS 1100VA, 230V, AVR, Back-UPS
Actual Stock Can Be Confirmed After Placing the Order.
SKU
BX1100LI-MS
Pay 4 interest-free payments of AED 421.00.Learn more
BX1100LI-MS : APC Back-UPS 550 Watts / 1100VA, 230V, AVR, Universal and IEC Sockets
APC Back-UPS 1100VA, 230V, AVR, Universal and IEC Sockets
- Battery Backup & Surge Protector for Electronics and Computers
- Includes: User Manual, Warranty card
Overview
BX1100LI-MS Features
APC Back-UPS 1100VA, 230V, AVR, Universal and IEC Sockets
Battery Backup & Surge Protector for Electronics and Computers
Includes: User Manual, Warranty card
- Audible alarmsProvides notification of changing utility power and UPS power conditions
- Automatic self-testPeriodic battery self-test ensures early detection of a battery that needs to be replaced.
- Automatic Voltage Regulation (AVR)Automatically steps up low voltage and steps down high voltage to levels that are suitable for your equipment.
- Battery backup and surge protectionOutlets provide abundant runtime for network gateway equipment and other critical low-power devices, allowing for hours of internet access during a power outage.
- LED IndicatorsProvide easy-to-read status of the unit and utility power conditions.
- Resettable circuit breakersEnables a quick recovery from overload events.
Back-UPSFeatures & Benefits
Protection
Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.
Manageability
LED status display
Quickly understand unit and power status with visual indicators.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Availability
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Marketing Features
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment
Safety
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
Detailed Tech Specification
Output
- Output power capacity550Watts / 1.1 kVA
- Max Configurable Power (Watts)550Watts / 1.1 kVA
- Nominal Output Voltage230V
- Output Frequency (sync to mains)50/60 Hz +/-1 Hz
- Output Frequency (not synced)50/60 Hz +/-1 Hz
- TopologyLine Interactive
- Waveform typeStepped approximation to a sinewave
- Output Connections
(2) IEC 320 C13 (Battery Backup)
- Transfer Time4ms typical : 6ms maximum
Input
- Nominal Input Voltage230V
- Input frequency50/60 Hz +/- 3 Hz (auto sensing)
- Input ConnectionsIEC-320 C14, NEMA 5-15P
- Cord Length1.22meters
- Input voltage range for main operations150 – 280 V
- Number of Power Cords1
- Type of Input Protection Required3-pole breaker
- Maximum Input Current10.0A
- Input Power Factor at Full Load0.5
Batteries & Runtime
- Battery typeMaintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
- Included Battery Modules1
- Typical recharge time6hour(s)
- Replacement Battery RBC17
- Expected Battery Life (years)2 – 4
- RuntimeView Runtime Graph
- EfficiencyView Efficiency Graph
Communications & Management
- Control panelLED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators
- Audible AlarmAlarm when on battery : distinctive low battery alarm : overload continuous tone alar
Surge Protection and Filtering
- Surge energy rating273Joules
Physical
- Maximum Height215mm , 21.5cm
- Maximum Width130mm , 13.0cm
- Maximum Depth336mm , 33.6cm
- Net Weight9.2kg
- Shipping weight10.6kg
- Shipping Height295mm , 29.5cm
- Shipping Width245mm , 24.5cm
- Shipping Depth440mm , 44.0cm
- ColorBlack
Environmental
- Operating Environment0 – 40 °C
- Operating Relative Humidity0 – 95 %
- Operating Elevation0-3000meters
- Storage Temperature-15 – 40 °C
- Storage Relative Humidity0 – 95 %
- Storage Elevation0-9000meters
- Audible noise at 1 meter from surface of unit45.0dBA
Conformance
-
ApprovalsCE, WEEE
-
Standard warranty2 years repair or replace
Sustainable Offer Status
- RoHSCompliant
- REACHREACH: Contains No SVHCs
| Product Name | APC BX1100LI-MS 1100VA, 230V, AVR, Back-UPS |
|---|---|
| Output Power | 1.1kVA/ 1100VA |
| Output Voltage | 230 Volts |
| Input Frequency | 50/60 Hz +/- 3 Hz (auto sensing) |
| Input Voltage Range | 230V |
| Interface Ports | LED |
| Control Panel | LED status display |
| Battery Type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof |
| Recharge Time | 6hour(s) |
| Audible Alarm | Provides notification of changing utility power and UPS power conditions |
| Cord Length | 1.22meters |
| Approvals | CE, WEEE |
| Dimensions | Maximum Height 215MM, Width 130MM, Depth 336MM, 33.6CM |
| Shipping Dimensions | Shipping Height 295MM, Shipping Width 245MM, Shipping Depth 440MM |
| Weight | 4.17 Kg |
| Shipping Weight | 10.6 |
| Manufacturer | APC |
| Color | Black |
