PRODUCT OVERVIEW

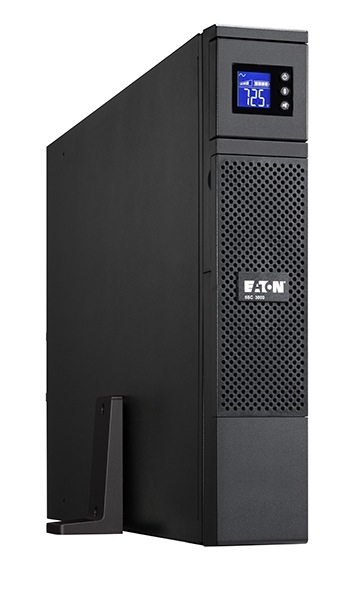

Eaton 5SC2200IRT UPS—Reliable Line‑Interactive Power Protection

The Eaton 5SC2200IRT is a 2.2 kVA / 1.98 kW line‑interactive UPS designed to provide dependable power backup and surge protection for rack‑mounted IT equipment, networking systems, servers, storage, and other sensitive electronics. It features a rack/tower convertible 2U form factor, allowing flexible deployment in standard 19″ racks or standalone installations.

Core Power & Performance

• Output capacity: 2200 VA / 1980 W at 230 V, with a 0.9 power factor to support more real load.

• Topology: Line‑interactive design with sine wave output for stable, clean power to connected loads.

• Input range: Operates over a wide input voltage window (approximately 184–276 V) and frequency range suitable for varied utility conditions.

• Outlets: Total 9 AC outputs — 8 × C13 and 1 × C19 receptacles for versatile equipment connections.

Battery & Management Features

The unit uses maintenance‑free lead‑acid batteries that are user‑replaceable — supporting automatic self‑testing and deep‑discharge protection to help extend usable life. It incorporates Advanced Battery Management (ABM) technology to optimize charge patterns and prolong overall battery health.

Communication and control interfaces include a multilingual LCD display for real‑time status, USB (HID) and RS‑232 serial ports, and a slot for an optional communication card (such as network management or relay cards) to enable remote monitoring and integration with Eaton’s Intelligent Power Manager suite. A mini‑terminal block supports remote ON/OFF and remote power off control.

Compliance & Deployment

The 5SC2200IRT is CE, TUV, UL 1778 and IEC/EN 62040 certified, ensuring adherence to international safety and performance standards. Its robust construction (19″, 2U height) and included rack‑mounting kit make it suitable for enterprise, data center, and server room deployments requiring continuous power continuity and protection in the event of utility fluctuation or outages.
