PRODUCT OVERVIEW

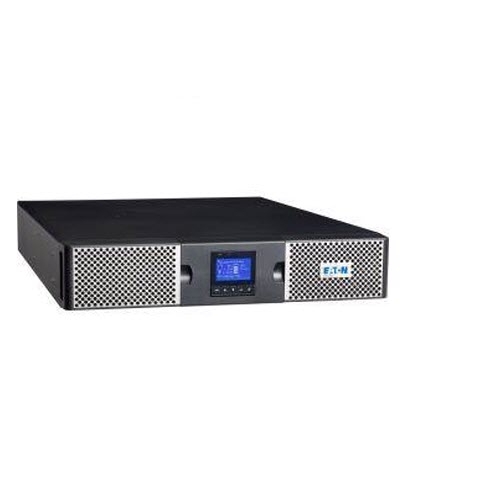

Eaton 9PX1000IRT2U—Online Double‑Conversion Rack/Tower UPS

The Eaton 9PX1000IRT2U is a high‑quality 1 kVA / 1000 W online double‑conversion uninterruptible power supply (UPS) designed to deliver continuous, clean, and reliable power protection for critical IT infrastructure. Built in a 2U rack/tower convertible form factor, this model is suitable for server racks, network closets, edge computing nodes, and medium‑size IT deployments that demand uninterrupted operation and tight voltage/frequency regulation.

Double‑Conversion Technology & Output Performance

At its core, the 9PX1000IRT2U uses online double‑conversion topology, which continuously regenerates AC power to isolates connected equipment from mains disturbances such as surges, sags, frequency shifts, and electrical noise. This generates a pure sine‑wave output with a unity output power factor (1.0) — meaning the unit provides 1000 W of real usable power from its 1000 VA rating.

Eight IEC C13 outlets offer versatile connectivity for servers, switches, storage, and networking devices, while the wide input voltage range (176–276 V without derating) enhances resilience across regions with unstable utility power.

Intelligent Connectivity & Management

For monitoring and control, the 9PX1000IRT2U includes:

• USB (HID‑compliant) port and RS‑232 serial port for system communication

• Mini terminal blocks for remote On/Off, remote power off, and output relay contacts

• Dry contact outputs for external signalling

• One expansion slot for optional communications cards (e.g., SNMP/Web)

The multilingual graphical LCD display provides real‑time insights into load level, battery health, mains status, and UPS events. Eaton’s Intelligent Power Manager and Intelligent Power Protector software suites support automated shutdowns, event logging, and integration with virtualised environments.

Applications & Use Cases

The Eaton 9PX1000IRT2U is well suited for enterprise server racks, data closets, networking gear, storage systems, and edge IT operations where continuous power quality and clean energy delivery are vital. Its online topology, hot‑swappable batteries, and extendable runtime capability make it a compelling UPS for business‑critical systems that cannot tolerate power interruptions.
