PRODUCT OVERVIEW

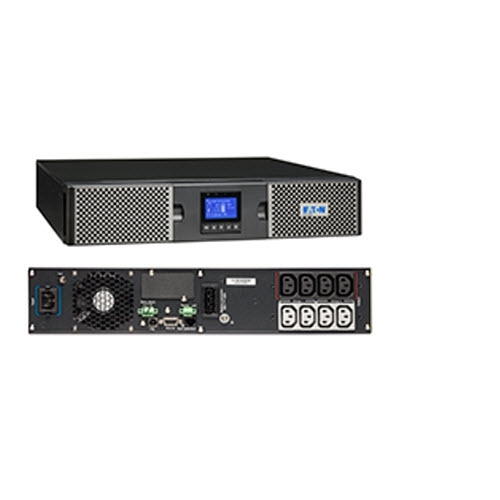

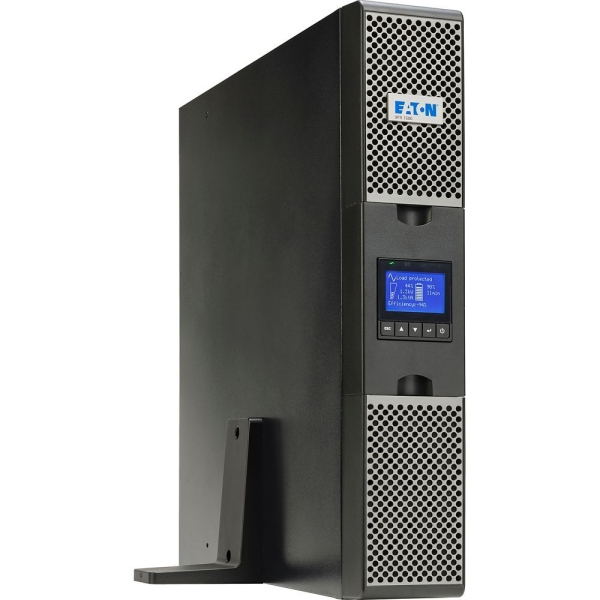

Eaton 9PX1500IRT2U—1.5 kVA Online Rack/Tower UPS

The Eaton 9PX1500IRT2U is a high‑efficiency 1.5 kVA / 1500 W online double‑conversion uninterruptible power supply (UPS) engineered to deliver continuous, clean, and reliable power protection for mission‑critical IT systems, server racks, networking infrastructure, and edge computing environments. Built in a 2U rack/tower convertible form factor, this UPS balances performance, efficiency, and manageability for demanding enterprise and SMB applications.

Online Double‑Conversion Technology & Performance

At its core, the 9PX1500IRT2U implements online double‑conversion topology, which continuously regenerates AC output independent of incoming mains quality. This means connected loads receive a pure sine‑wave output with near‑zero transfer time during outages or severe mains fluctuations. The UPS supports a unity output power factor (1.0), delivering a full 1500 W of real power—not just VA rating—making it ideal for modern active‑PFC power supplies found in servers and storage systems.

Rated for 230 V output (configurable across 200/208/220/230/240 V) with an output range tightly regulated to ±1%, this unit ensures tight voltage and frequency stability even under utility irregularities.

Connectivity & Smart Management Features

For intelligent power control and monitoring, this UPS integrates:

• USB port (HID‑compliant) for automatic system shutdown and status reporting

• RS‑232 serial port

• Dry contacts and mini terminal blocks for remote ON/OFF, power‑off signaling, and output relay status

• One expansion slot for optional network management cards (e.g., SNMP/Web card)

It is compatible with Eaton’s Intelligent Power Manager (IPM) and Intelligent Power Protector (IPP) software, enabling automated shutdowns, event logging, and integration into virtualised ecosystems such as VMware and Hyper‑V. The multilingual graphical LCD display offers real‑time system insights, including load, battery condition, and power metrics.
